Plot Settings
1. Overview
The plot settings feature enables users to tailor the appearance and presentation of their plots. This includes configuring elements such as axis labels, titles, legend entries, axis limits, and other visual or descriptive components that support clear and effective data representation.
2. Usage Instructions

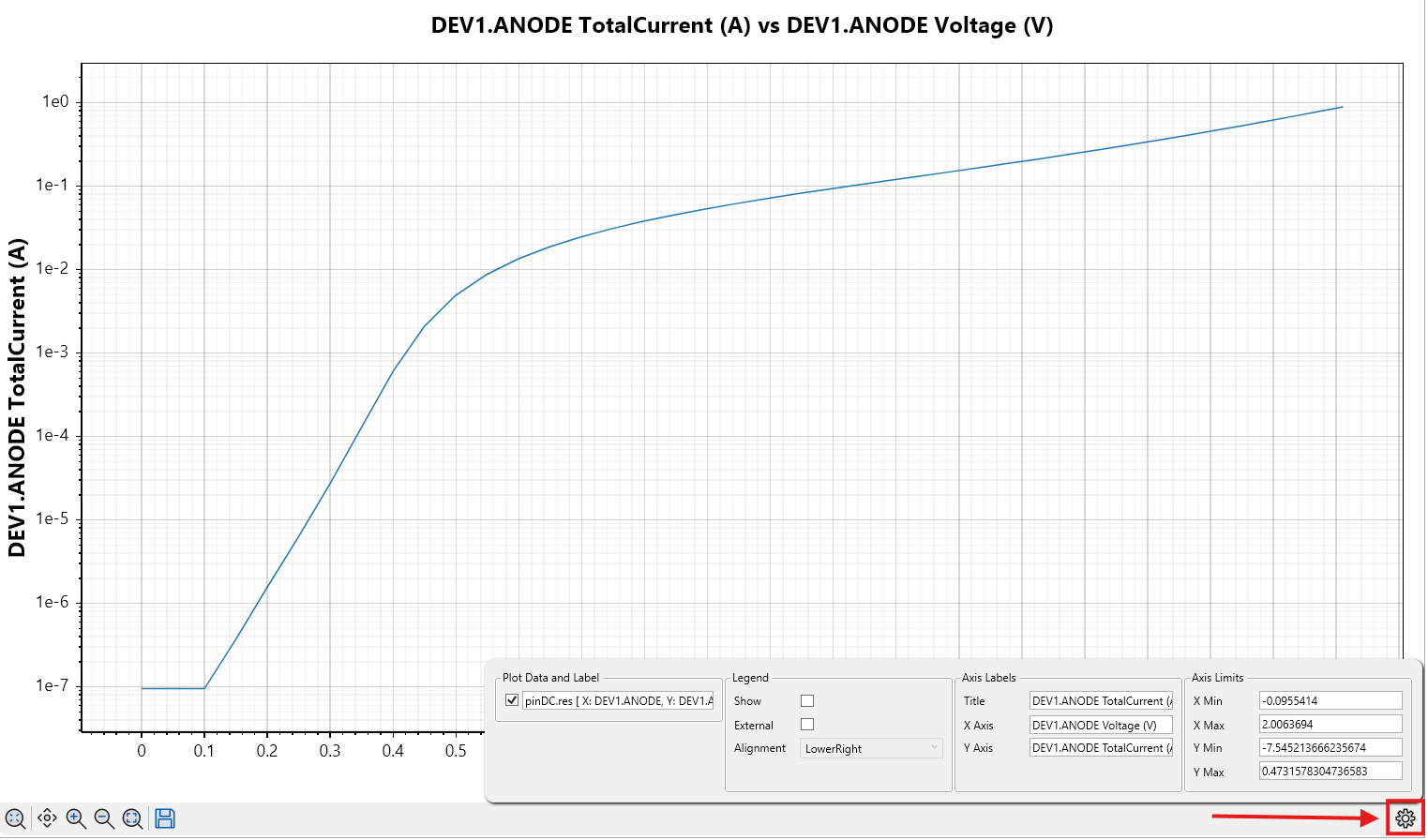

- Plot settings can be accessed by clicking the settings icon
in the bottom right of the Results Visualiser.

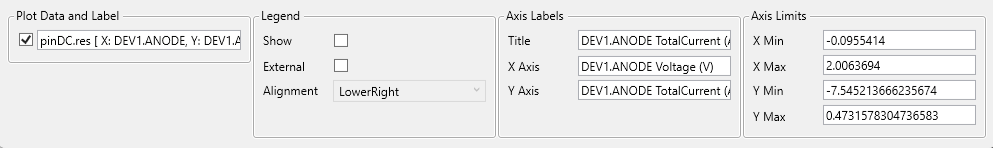

- When pressed, the plot settings pop-up will appear. From here, the plot settings parameters can be adjusted as desired.
3. Parameters
3.1. Plot Data and Label
When data series are added to a plot, each series is automatically assigned a label to distinguish it from other series displayed on the same chart. These labels are shown in the plot legend.
Users may edit these labels to provide clearer descriptions or to support more effective comparison between multiple data series.
Each label is accompanied by a checkbox that allows users to toggle the visibility of the corresponding data series within the plot.
3.2. Legend
When two or more data series are added to a plot, a legend is generated automatically. The legend can be toggled on or off, and its display position can be adjusted according to user preference.
- The internal legend is displayed within the plot area, positioned along one of the axes edges or in a plot corner.
- The external legend is displayed outside the plot area, aligned along one of the plot’s edges.
| Name | Description | Unit |
|---|---|---|
Show | Toggles visibility of the legend | - |
External | Toggles whether the legend is shown inside or outside of the plot axes. | - |
Alignment | Where the legend is shown. | - |
3.3. Axis Labels
The plot title and axis labels can be modified within this section. Users may update these fields to provide clearer descriptions of the plotted data or to align with preferred naming conventions.
| Name | Description | Unit |
|---|---|---|
Title | Plot title displayed above the plot. | - |
X Axis | Label for the x-axis. | - |
Y Axis | Label for the y-axis. | - |
3.4. Axis Limits
By default, the axes are automatically scaled to display the full range of the data. Users may adjust the axis limits in this section to define custom minimum and maximum values for each axis.
| Name | Description | Unit |
|---|---|---|
X Min | Smallest value of x to display. | - |
X Max | Largest value of x to display. | - |
Y Min | Smallest value of y to display. | - |
Y Max | Largest value of y to display. | - |
